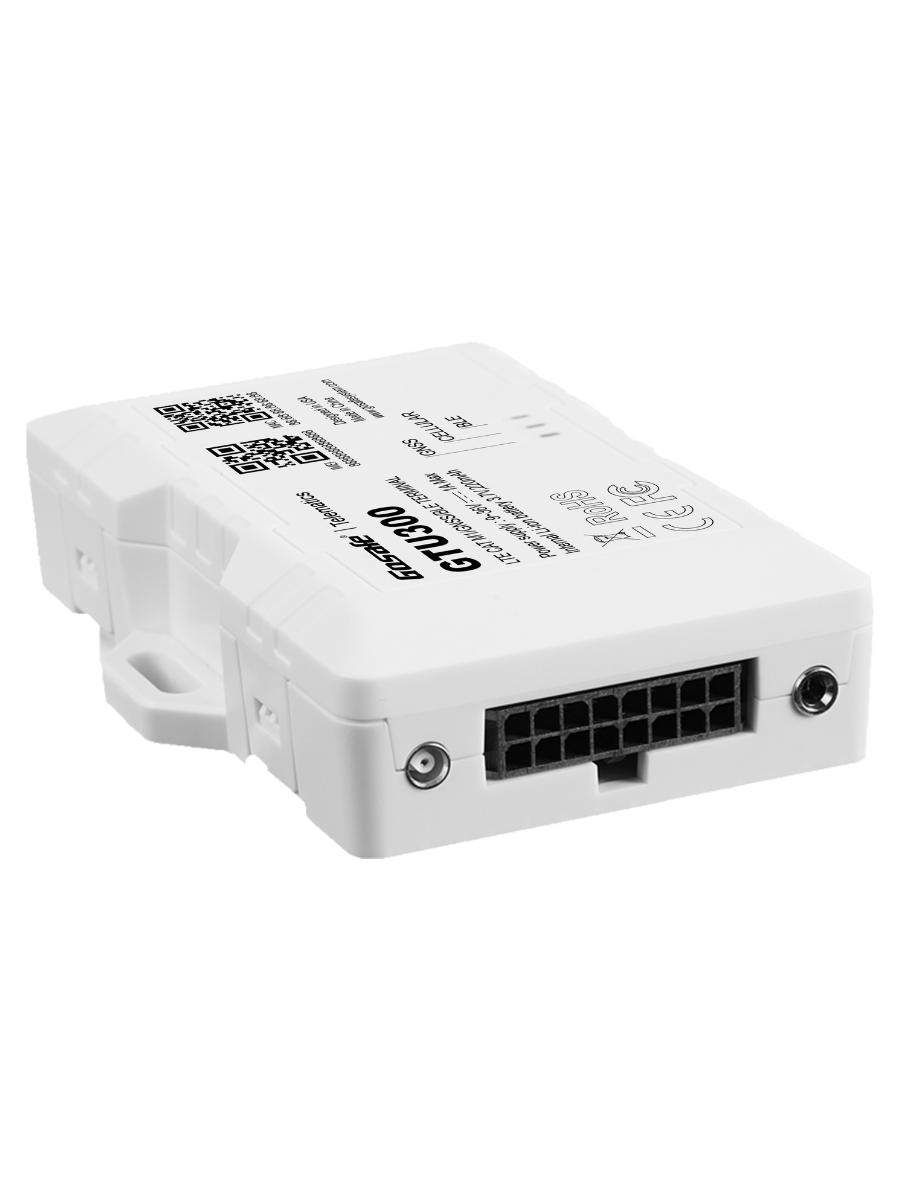

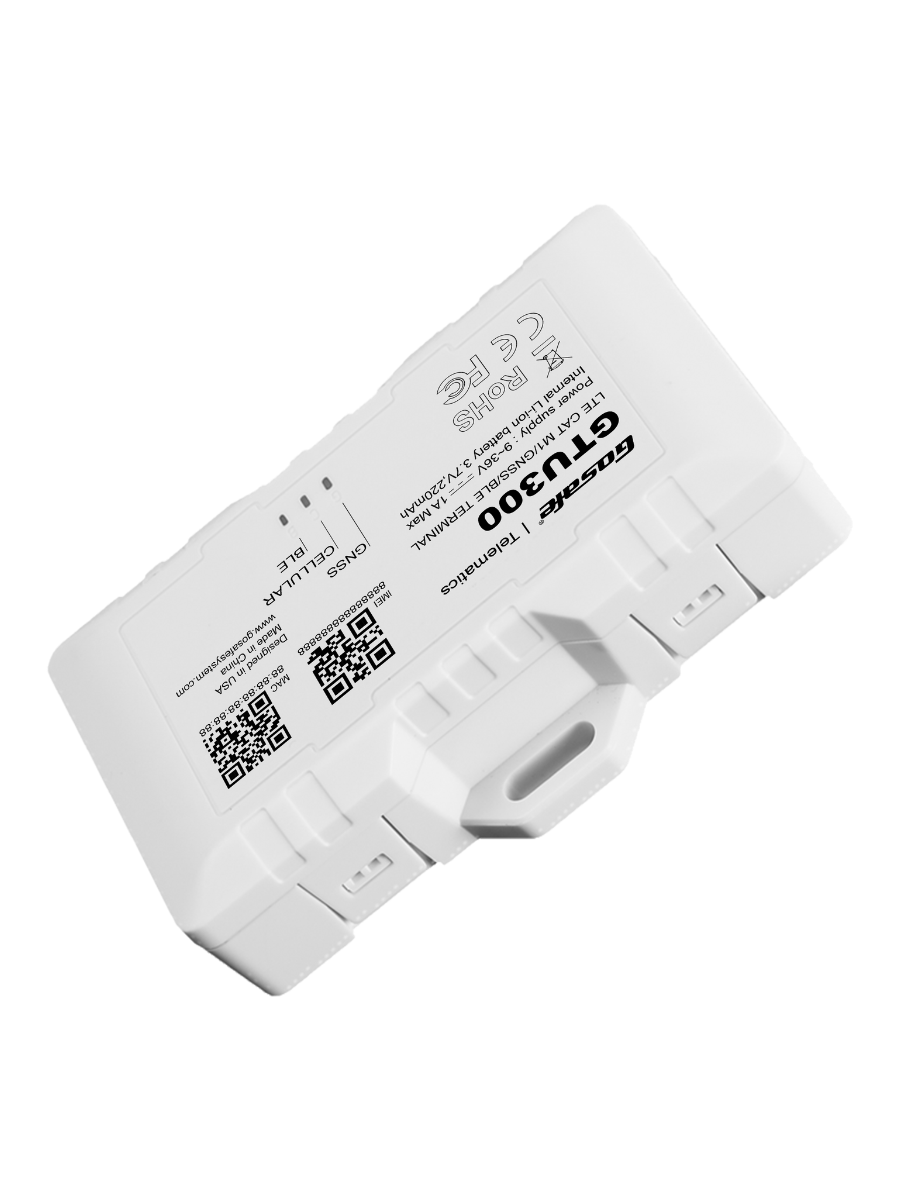

Transform Fleet Management Effortlessly with GTU300 – The Ultimate Tracking Device!
GTU300 is a versatile fleet-tracking device that can be installed easily. It supports various vehicle tracking applications such as fleet management, insurance telematics, stolen vehicle recovery, vehicle finance, auto rental, and more. It provides global CAT-1 connectivity and accurate location data with multiple inputs and outputs.
- Worldwide Connectivity LTE CAT-1/2G
- Wi-Fi Location technology in case no GPS fix
- Multiple digital Input/Output and Analog Inputs
- Serial interface RS232/RS485
- Bluetooth BLE V4.2
GeneralCommunication Modes :
LTE/GPRS and TCP/UDP/SMS
Location Technology :
56 Channels GNSS
Operating Voltage :
12 and 24 volt vehicle systems
ElectricalOperating Voltage :
9-40 VDC operational for 12V & 24V
Power Consumption :
400uA @ 12V (Deep Sleep)
3mA @ 12V (Sleep)
60mA @ 12V (Power Save)
120mA @ 12V (Active Tracking)
Backup Battery :
LI-ON 220mAh, Battery Recharging Range is 0 to +45ºC
GPSMulti GNSS Engine
GPS/Glonass/Galileo/BeiDou
GPS/QZSS L1 C/A, Glonass L10F
BeiDou B1, Galileo E1 B/C
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Concurrent GNSS: 3
Accuracy: SBAS 2.0m Open Sky
Tracking Sensitivity: -167dBm
Antenna: Patch internal
Assist GPS: Supported
Physical Dimensions :
92(L) x 67.5(W) x 22(H)mm
Weight :
85g
CellularData Support :
TCP, UDP, SMS
LTE CAT-1 :
B1/2/3/4/5/7/8/12/13/17/18/19
20/25/26/28/66
GSM/3G:
850/900/1800/1900 Mhz
LTE Power :
Class 5 (20dBm)
GSM/GPRS Fallback :
GPRS Class 10
LTE Data Rate :
5Mbps UL/10Mbps DL
SIM Card :
1.8/3.3 V
EnvironmentalOperating Temperature:
-40 ~ +85°C (without Backup Battery)
-10 ~ +60°C (with Backup Battery)
Humidity:
95%RH @ 50°C non-condensing
Shock & Vibration:
U.S. Military Standards 202G and 810F, SAE
J1455
EMC/EMI:
SAE J1113; FCC–Part 15B
RoHS: Compliant
IP Rating: IPX2
Input/OutputIgnition Sense :
1 Fixed Bias
Digital Inputs :
2 High/Low 0-30VDC
Digital Outputs :
3 Open Collector Relay 150mA
Serial Interface :
1 (RS232)
Speaker :
1 (RX/TX)
MIC :
1 (2.5mm audio jack)
1-Wire Interface:
1 (Driver ID/Temperature Sensor)
Power Output: 5V Power Output
BlE 4.2: for Wireless Sensor
Connectors, SIM Card AccessConnector Type :
16 PIN Molex Connector
Micro USB: 1 Micro USB (configuration/debug)
GPS Antenna: Internal
Cellular Antenna: Internal
SIM Access: Internal (4FF) or e-SIM Embedded on PCB
On BoardCPU :
ARM Cortex M3
Flash Memory :
8Mbit
3D Accelerometer :
On Board
Certifications
CE, E-Mark, FCC(under process)
