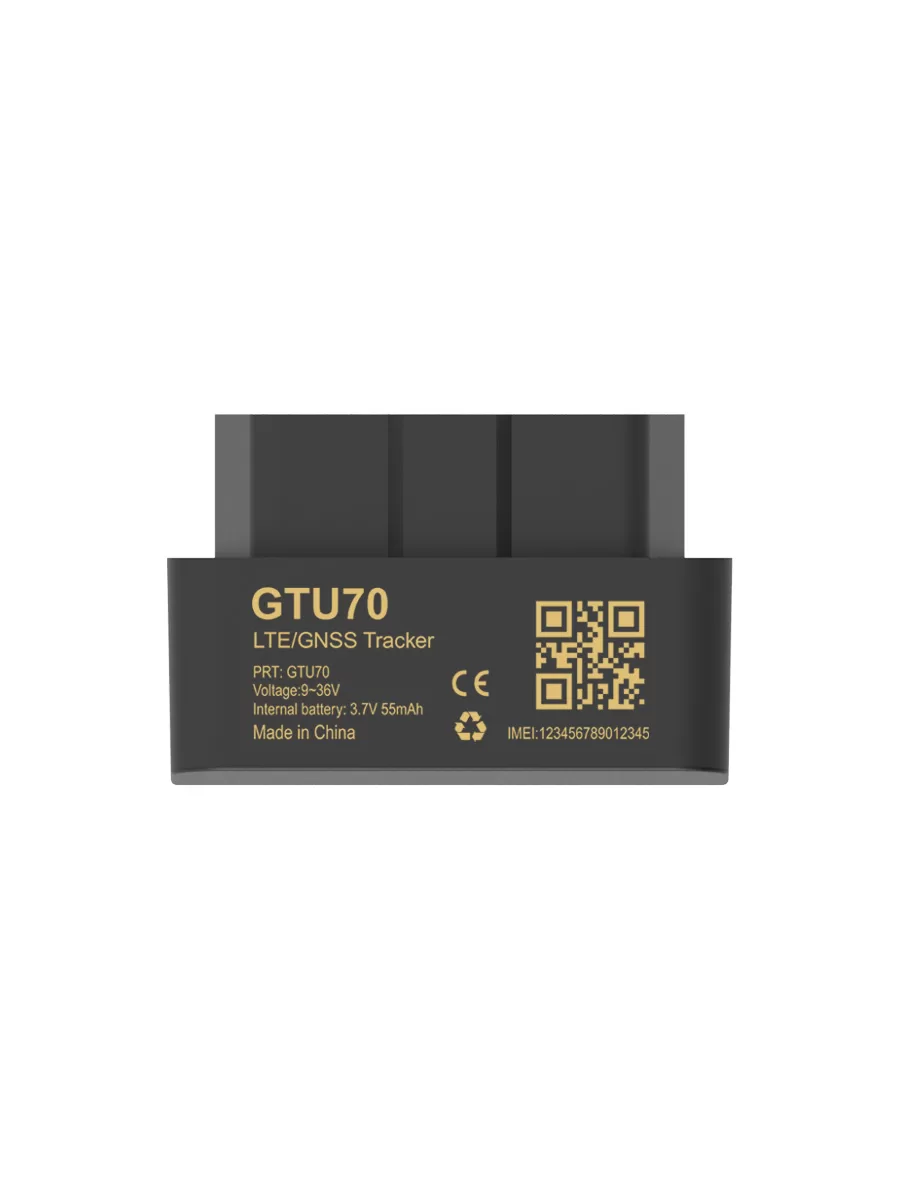

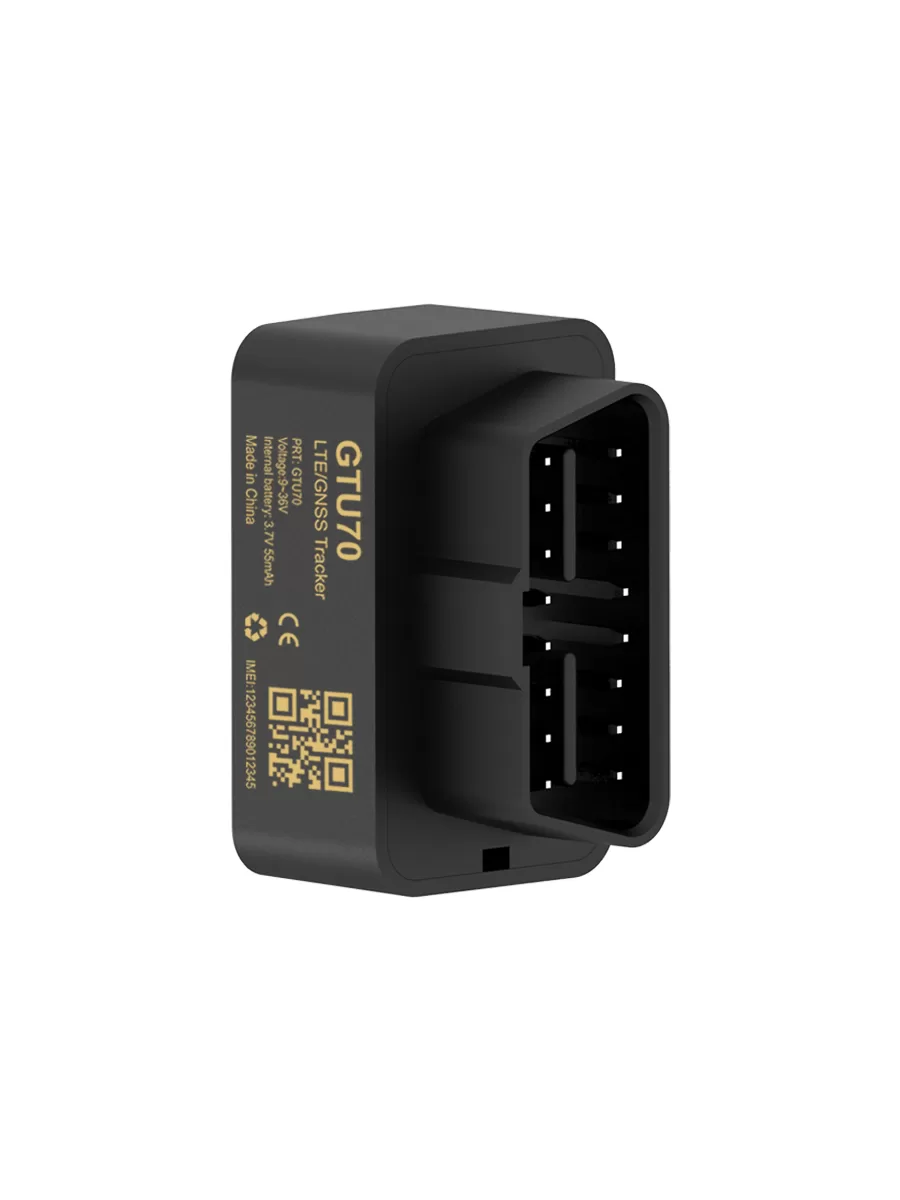

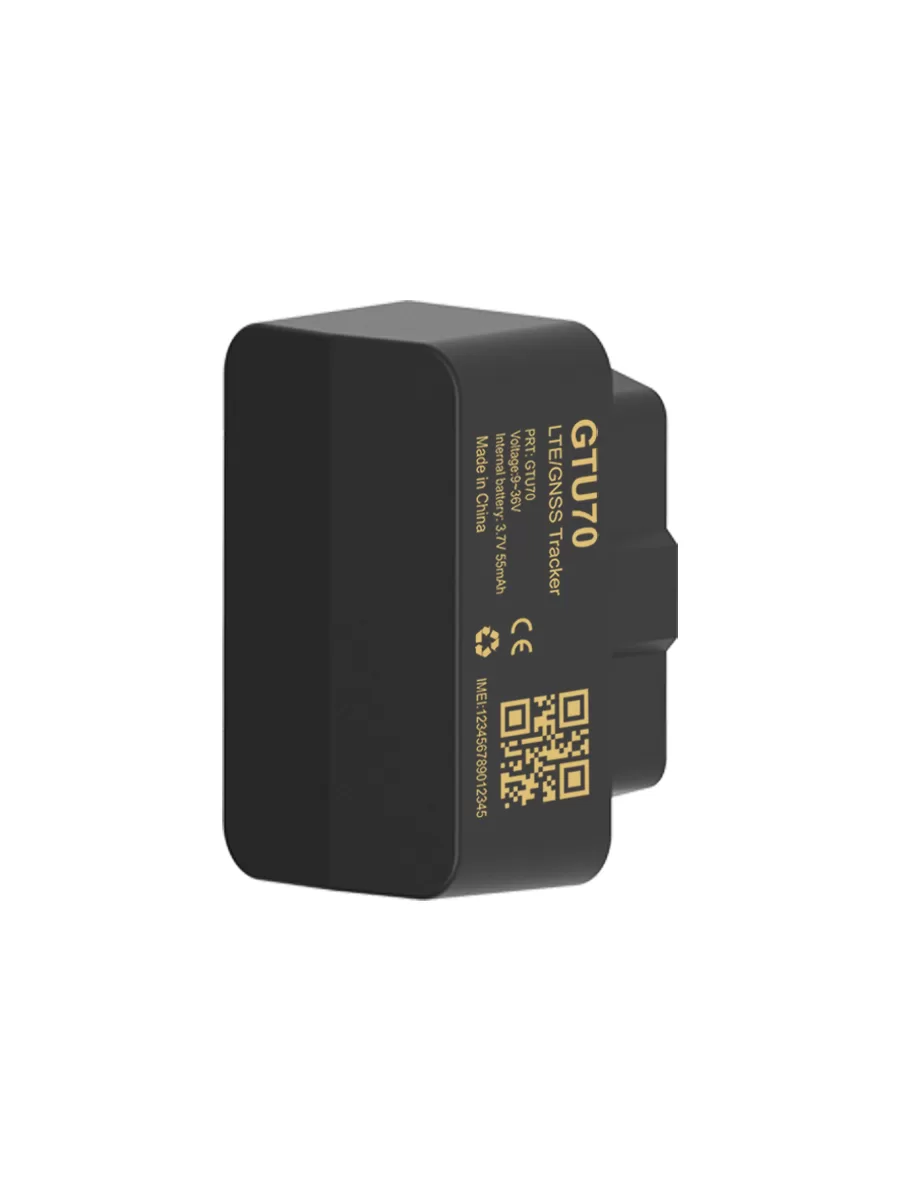

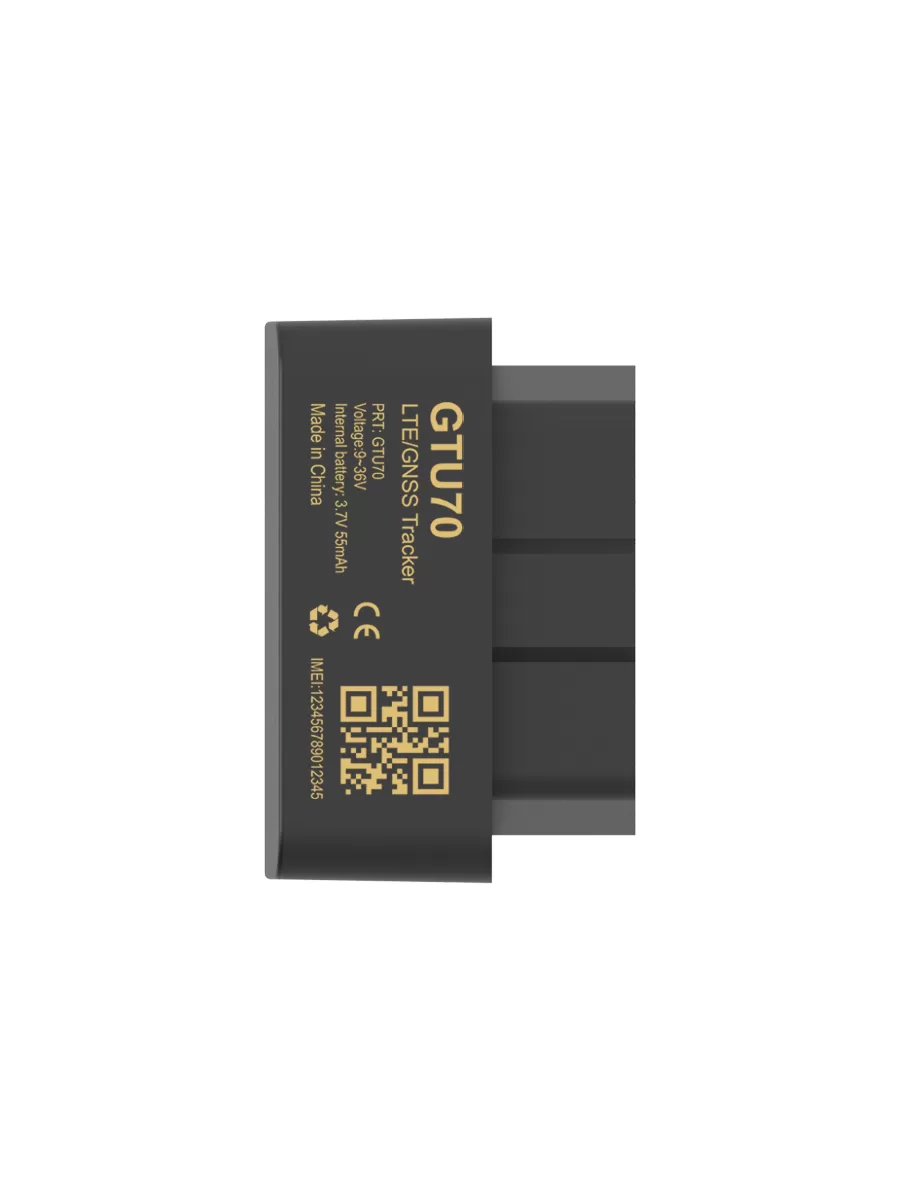

Plug & Play OBD GPS Tracker
The GTU70 OBD gps tracker is a compact and convenient GPS tracking device that plugs directly into a vehicle’s OBD port—no tools or wiring required. Designed for ease of use, it is commonly employed by businesses to reduce insurance costs, optimize fuel and travel efficiency, and enhance vehicle usage monitoring.
- OBD GPS and Telemetry Device
- Compact and Easy Install
- LTE CAT-1 Worldwide Connectivity
- Driving Behaviour Monitoring
- Power Disconnect Alarm
- BLE 5.0
GeneralCommunication Modes :
GPRS, LTE, and TCP/SMS
Location Technology :
32 Channels GPS
Operating Voltage: 9~36 VDC
ElectricalOperating Voltage: 9 ~ 36VDC
Power Consumption :
25mA @12V (Active Tracking)
4mA @12V (Deep Sleep)
Backup Battery :
3.7V/55mAh Li-ON
Battery Recharging Temp is 0~46°C
GPSLocation Technology :
32 Channel GPS
3 GNSS (GPS/Glonass/Beidou)
Accuracy : +/- 10m Open Sky
Tracking Sensitivity: -162dBm
Cold Start: 35 Sec
Hot Start: 1 Sec
Antenna: Patch internal
Assist GPS: Supported
Physical Dimensions :
48.5(L) x 29(W) x 19.5(H)mm
Weight :
30g
CellularData Support :
SMS, TCP
GSM/GPRS Quad Band :
850/900/1800/1900 MHz
LTE CAT1 :
B1/B3/B5/B7/B8/B20 (EMEA)
B1/B2/B3/B4/B5/B8/B28/B66 (Latam)
LTE Output Power :
Class 3 (23dBm +/- 2dB)
LTE Data Rate :
10Mbps UL/5.0Mbps DL
GSM/GPRS Output Power :
Class 4 (33dBm±2dB)
SIM Card: 4FF 1.8/3.3 V
EnvironmentalIP Rating: IP52
Temperature :
-20 ~ +77°C (working)
-40 ~ +85°C (storage)
Humidity :
95%RH @ 50°C non-condensing
RoHS: Compliant (Optional)
InterfaceStatus LEDs :
Power/Cellular/GPS
SIM Access :
Internal 4FF (Nano SIM)
Cellular Antenna :
Internal
Connector:
SAE J1962 (OBD)
On BoardCPU :
ASR 1603
Flash Memory :
(2000 records)
3D Accelerometer :
On Board
BLE :
BLE 5.0 for Sensors
- + Features
-
- + Specifications
-
GeneralCommunication Modes :
GPRS, LTE, and TCP/SMS
Location Technology :
32 Channels GPS
Operating Voltage: 9~36 VDCElectricalOperating Voltage: 9 ~ 36VDC
Power Consumption :
25mA @12V (Active Tracking)
4mA @12V (Deep Sleep)
Backup Battery :
3.7V/55mAh Li-ON
Battery Recharging Temp is 0~46°CGPSLocation Technology :
32 Channel GPS
3 GNSS (GPS/Glonass/Beidou)
Accuracy : +/- 10m Open Sky
Tracking Sensitivity: -162dBm
Cold Start: 35 Sec
Hot Start: 1 Sec
Antenna: Patch internal
Assist GPS: SupportedPhysical Dimensions :
48.5(L) x 29(W) x 19.5(H)mmWeight :
30gCellularData Support :
SMS, TCP
GSM/GPRS Quad Band :
850/900/1800/1900 MHz
LTE CAT1 :
B1/B3/B5/B7/B8/B20 (EMEA)
B1/B2/B3/B4/B5/B8/B28/B66 (Latam)
LTE Output Power :
Class 3 (23dBm +/- 2dB)
LTE Data Rate :
10Mbps UL/5.0Mbps DL
GSM/GPRS Output Power :
Class 4 (33dBm±2dB)
SIM Card: 4FF 1.8/3.3 VEnvironmentalIP Rating: IP52
Temperature :
-20 ~ +77°C (working)
-40 ~ +85°C (storage)
Humidity :
95%RH @ 50°C non-condensing
RoHS: Compliant (Optional)InterfaceStatus LEDs :
Power/Cellular/GPS
SIM Access :
Internal 4FF (Nano SIM)
Cellular Antenna :
Internal
Connector:
SAE J1962 (OBD)On BoardCPU :
ASR 1603
Flash Memory :
(2000 records)
3D Accelerometer :
On Board
BLE :
BLE 5.0 for Sensors - + Applications
-
- + Accessories
