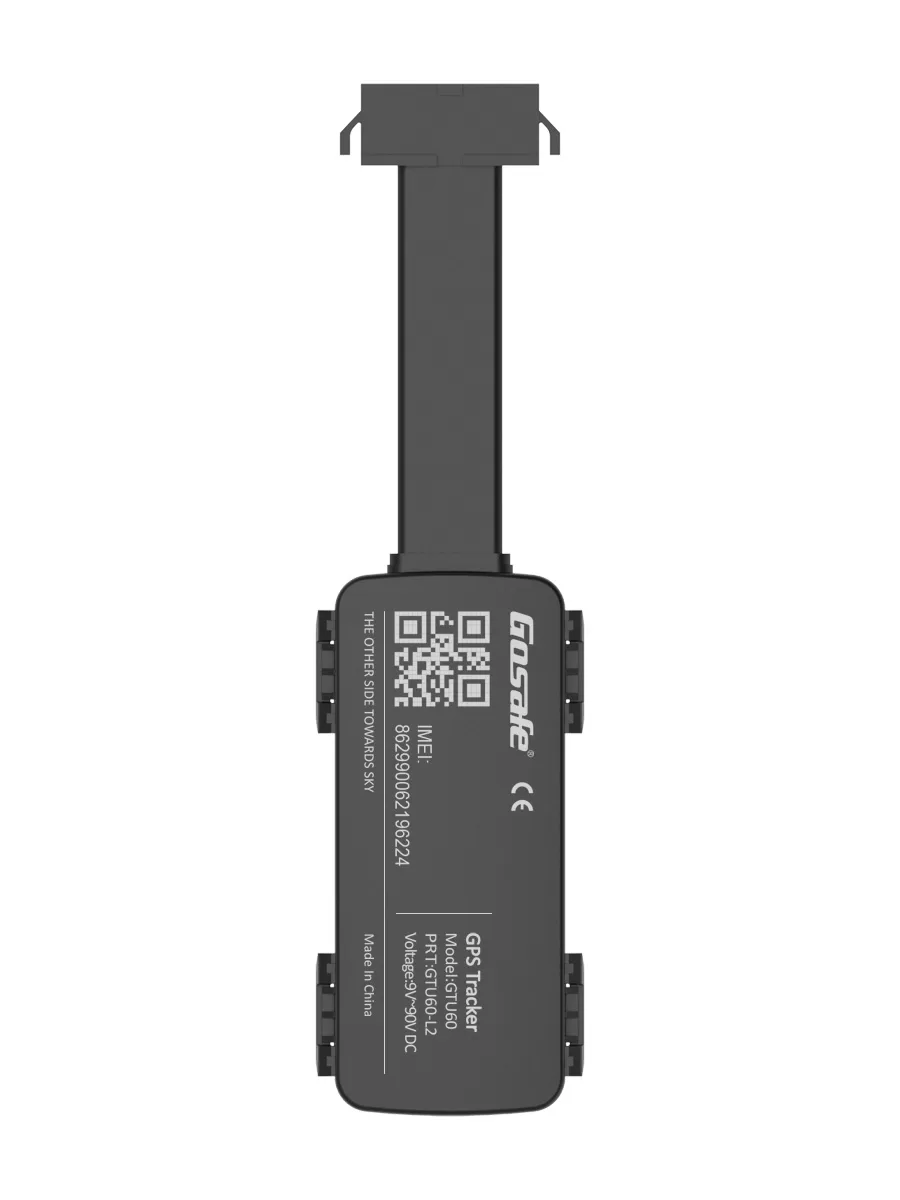

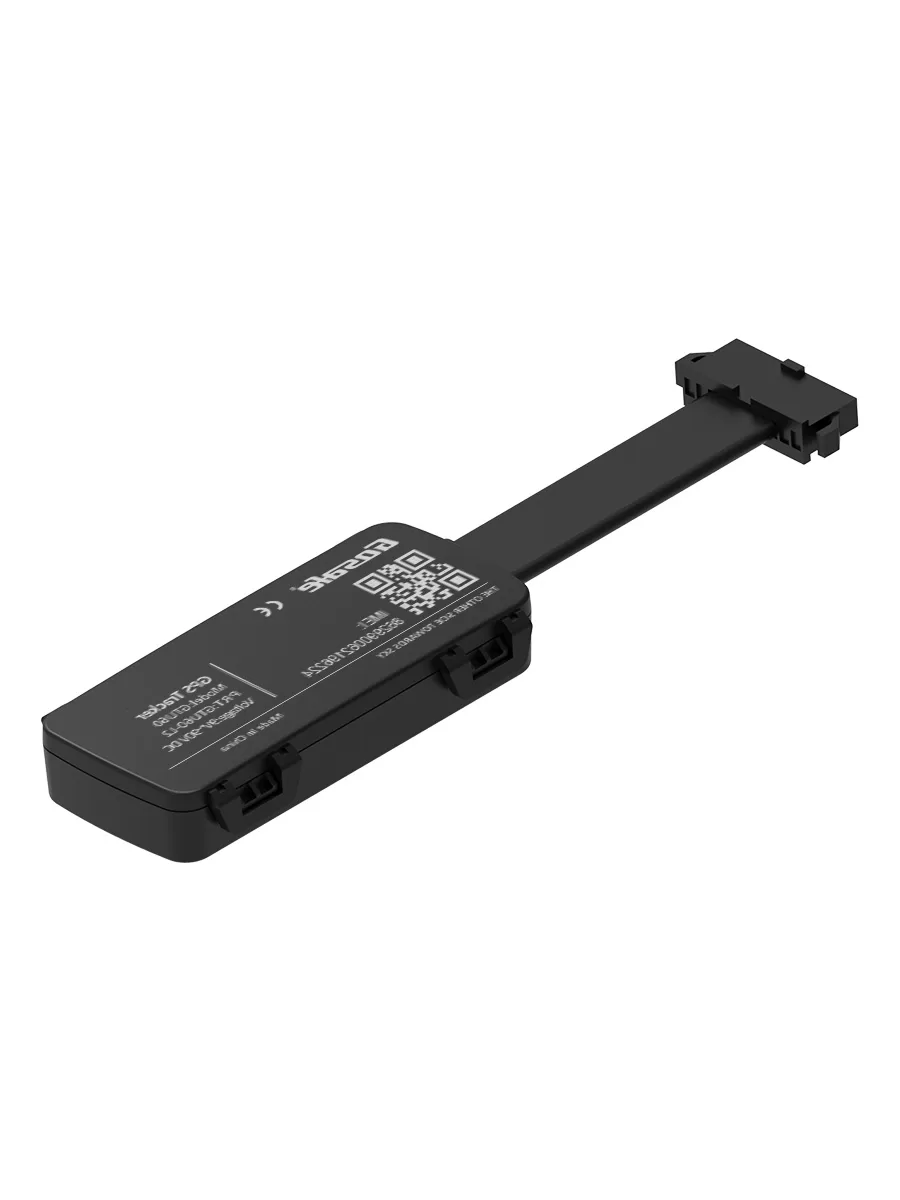

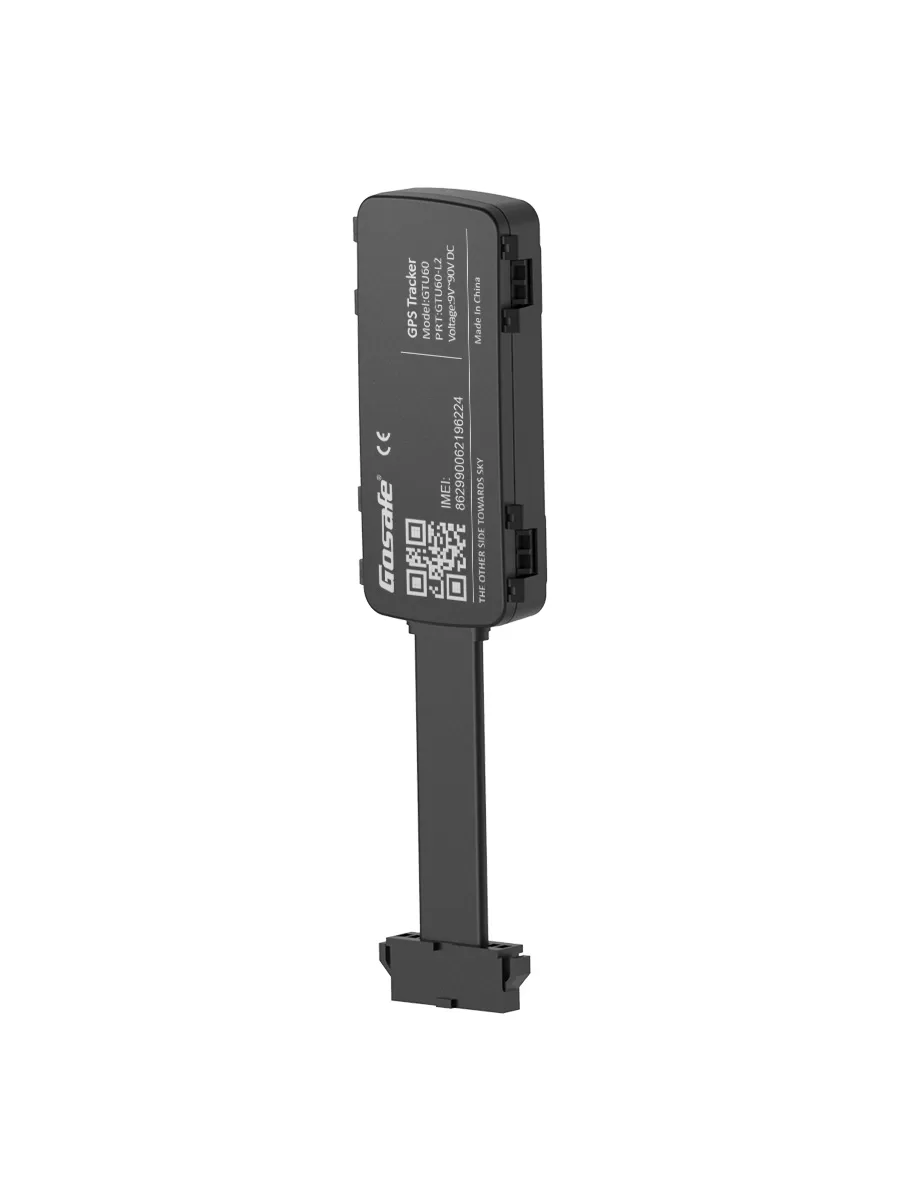

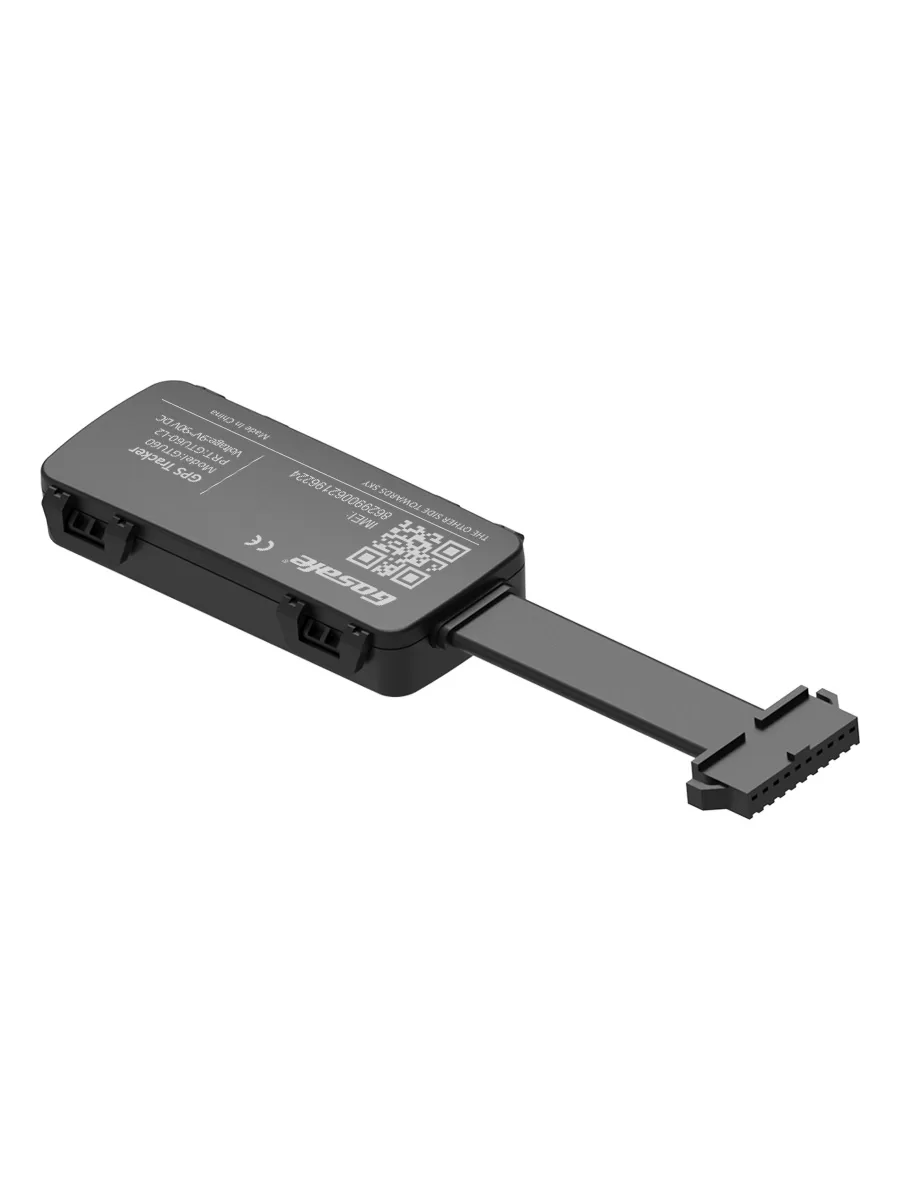

GTU60 Economical Fleet Tracker
GTU60 is an economical and versatile fleet-tracking device designed with a core objective: one device, multiple possibilities.

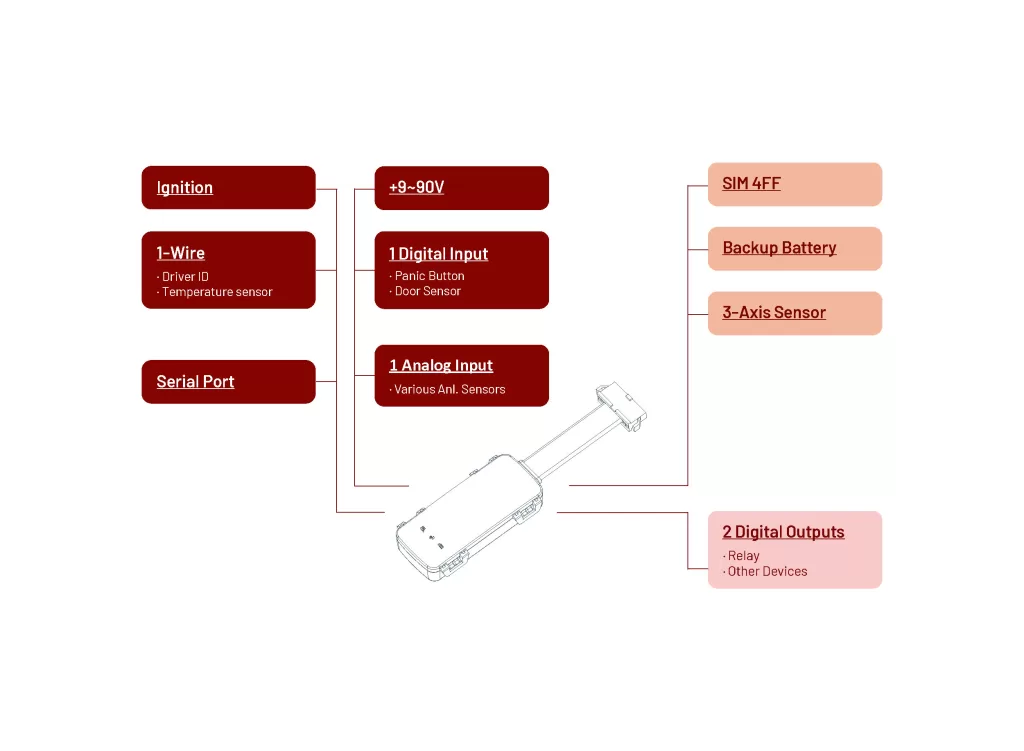

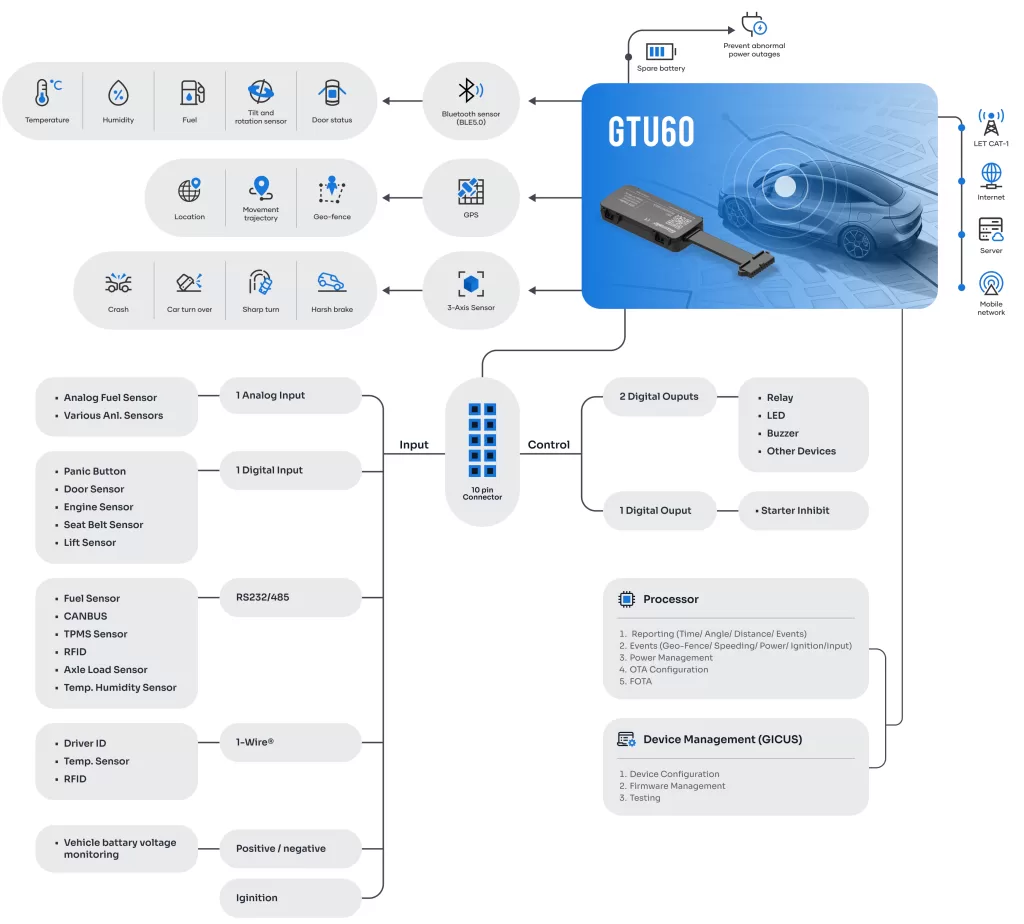

It supports multiple I/O interfaces, BLE 5.0, a serial port, and 1-Wire connectivity enabling integration with a wide range of sensors to meet most fleet-managemen requirements.
GTU60 is ideal for small and midsize fleets, rental companies, and other application requiring a flexible and cost-effective telematics solution.
- 4G Connectivity LTE CAT1/2G
- Serial Port
- 1-Wire Interface
- BLE 5.0 for wireless sensor
- Crash Data 10Hz
GeneralCommunication Modes :
LTE/GPRS and TCP/SMS
Location Technology :
32 Channels GPS
Operating Voltage :
12 and 24 volt vehicle systems
ElectricalOperating Voltage :
9-90V DC operational for 12V & 24V
Power Consumption :
4mA 12V Avg. (Sleep), 25mA 12V Avg. (Active Tracking)
Backup Battery :
LI-ON 220mAh, Battery Recharging Range is 0 to +45ºC
GPSLocation Technology :
32 Channel GPS+Glonass+Beidu
Accuracy :
SBAS 10.0m CEP
Tracking Sensitivity :
-162dBm
Antenna :
Patch internal
Assist GPS : Supported
Physical Dimensions :
78(L) x 33(W) x 15(H)mm
Weight :
35g (With Battery)
CellularData Support :
SMS, TCP
4G LTE Bands:
B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
2G GSM Bands:
850/900/1800/1900 Mhz
Output Power :
GSM900 Class 4 (33dBm ± 2dBm)
DCS1800 (26dBm ± 3dBm)
CAT1 FDD (23dBm ± 2dBm)
SIM Card : 4FF Nano
Environmental Operating Temperature :
-20 ~ +75°C (Working)
-40 ~ +85°C (Storage)
Humidity :
95%RH @ 50°C non-condensing
IP Rating : IP X5
Input/OutputIgnition Sense :
One dedicated wire for Ignition
Digital Input :
1 Digital Input
Analog Input :
1 Analog Input
1@Wire:
1Wire for Driver ID and Temp. Sensor
Serial Port :
UART/RS232 Serial Port
Digital Output :
2 digital outputs, open drain, 300mA drive current max
Status LEDs :
Power, GPS, Cellular
Connectors, SIM Card AccessConnector Type :
10 Pin Molex
GPS Antenna : Internal
GSM Antenna : Internal
SIM Card : Internal
On BoardCPU :
COB
Flash Memory :
4Mbit (3000 records)
3D Accelerometer:
On Board
BLE 5.0 :
On Board
MountingTie Wrap, Velcro or adhesive
