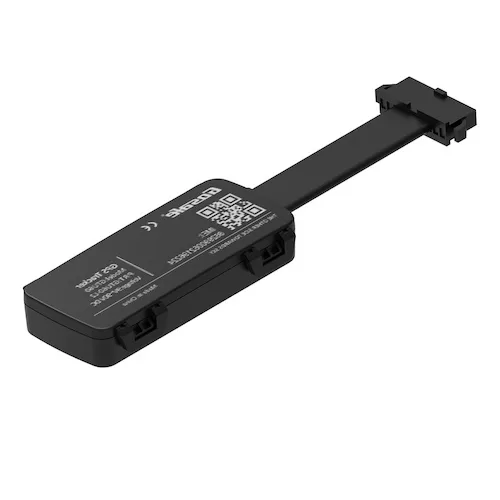

Small GPS Tracker
Economical, full-featured, easy to covert and install in automobiles and motorcycles. Ideal solution for UBI, stolen vehicle recovery, BHPH, auto rental, motor bike, power sports and other related automotive applications.
Discover an economical, full-featured device that seamlessly integrates and installs into both automobiles and motorcycles. It’s perfectly suited for enhancing Usage-Based Insurance (UBI) programs, expediting stolen vehicle recovery, managing BHPH inventories, streamlining auto and motorbike rentals, securing power sports vehicles, and supporting diverse automotive needs.
- 4G CAT-1/2G worldwide connectivity
- Crashdata with 50Hz recording
- Support driving behavior
- Ignition detection
- Digital Input for Panic Button
- Water-resistant, IP65 compliant
GeneralCommunication Modes :
LTE/GPRS and TCP/SMS
Location Technology :
32 Channels GPS
Operating Voltage :
12 and 24 volt vehicle systems
ElectricalOperating Voltage :
9-90V DC operational for 12V & 24V
Power Consumption :
4mA 12V (Sleep), 29mA 12V (Active Tracking)
Backup Battery :
LI-ON 220mAh, Battery Recharging Range is 0 to +45ºC
GPSLocation Technology :
32 Channel GPS+Glonass+Beidu
Accuracy :
SBAS 10.0m CEP
Tracking Sensitivity :
-162dBm
Antenna :
Patch internal
Assist GPS : Supported
Physical Dimensions :
78(L) x 33(W) x 15(H)mm
Weight :
35g (With Battery)
CellularData Support :
SMS, TCP
4G LTE Bands:
B1/B2/B3/B4/B5/B7/B8?b20/B28/B66
2G GSM Bands:
850/900/1800/1900 Mhz
Output Power :
GSM900 Class 4 (33dBm ± 2dBm)
DCS1800 (26dBm ± 3dBm)
CAT1 FDD (23dBm ± 2dBm)
SIM Card : 4FF Nano
Environmental Operating Temperature :
-25 ~ +75°C (Operational)
-40 ~ +85°C (Storage)
Humidity :
95%RH @ 50°C non-condensing
IP Rating :
IP X5

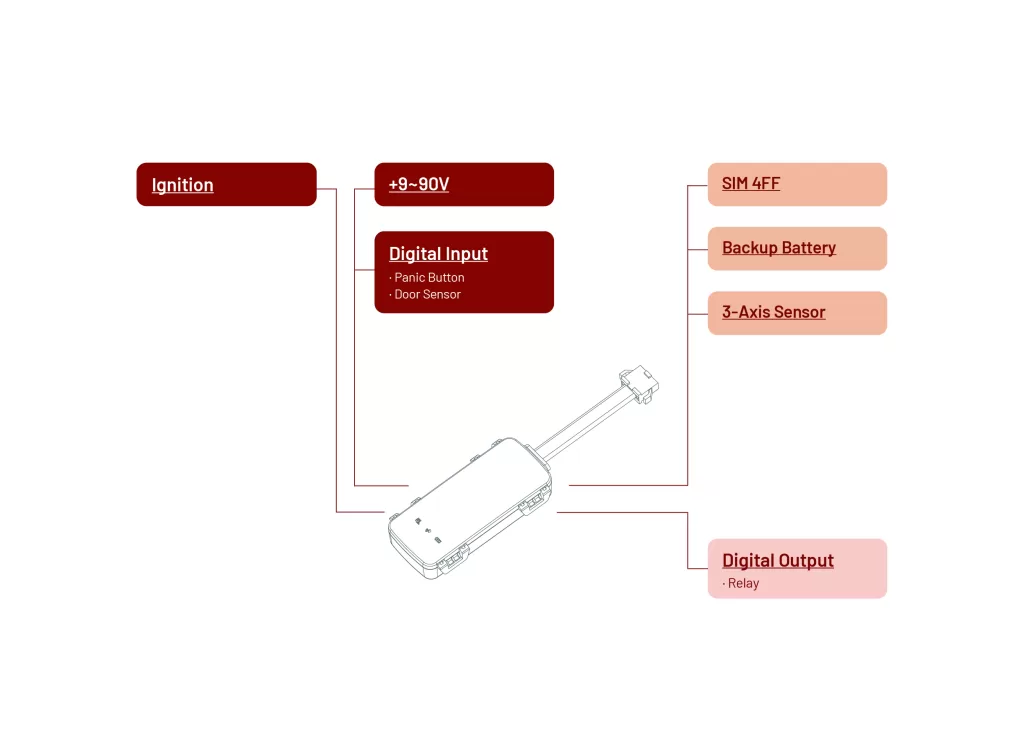

Input/OutputPower supply: (Red) +9~90 VDC
GND: (Black) Ground
Digital Input: (Blue) for Panic button
Ignition: (Orange) for Ignition Detection
Digital Output: (Yellow) for Relay
LED Indicator: Power/Cellular/GPS Indicator
Connectors, SIM Card AccessConnector Type :

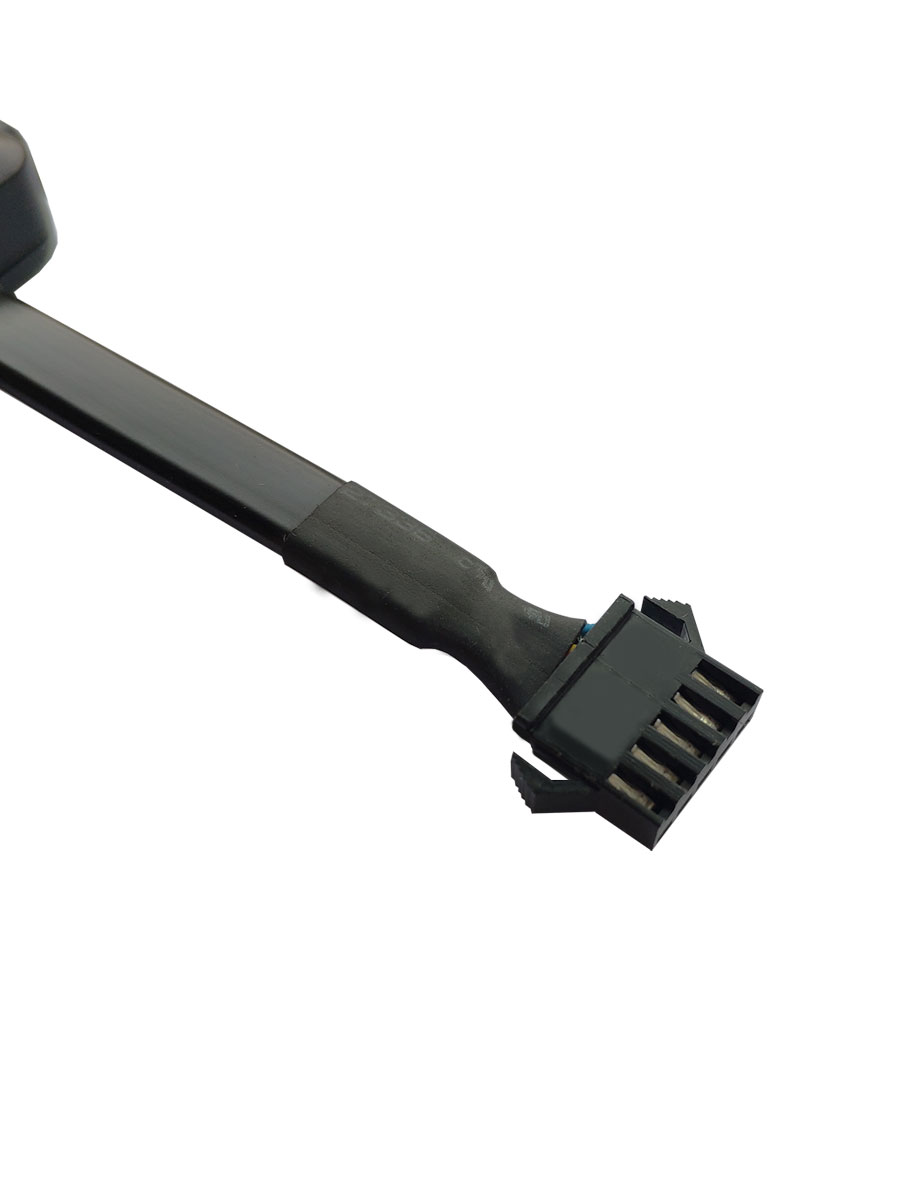

5 Pin Molex
GPS Antenna : Internal
GSM Antenna : Internal
SIM Card : Internal
On BoardCPU :
COB
Flash Memory :
4Mbit (3000 records)
3D Accelerometer :
On Board
MountingTie Wrap, Velcro or adhesive
- + Features
-
- + Specifications
-
GeneralCommunication Modes :
LTE/GPRS and TCP/SMS
Location Technology :
32 Channels GPS
Operating Voltage :
12 and 24 volt vehicle systemsElectricalOperating Voltage :
9-90V DC operational for 12V & 24V
Power Consumption :
4mA 12V (Sleep), 29mA 12V (Active Tracking)
Backup Battery :
LI-ON 220mAh, Battery Recharging Range is 0 to +45ºCGPSLocation Technology :
32 Channel GPS+Glonass+Beidu
Accuracy :
SBAS 10.0m CEP
Tracking Sensitivity :
-162dBm
Antenna :
Patch internal
Assist GPS : SupportedPhysical Dimensions :
78(L) x 33(W) x 15(H)mm
Weight :
35g (With Battery)CellularData Support :
SMS, TCP
4G LTE Bands:
B1/B2/B3/B4/B5/B7/B8?b20/B28/B66
2G GSM Bands:
850/900/1800/1900 Mhz
Output Power :
GSM900 Class 4 (33dBm ± 2dBm)
DCS1800 (26dBm ± 3dBm)
CAT1 FDD (23dBm ± 2dBm)
SIM Card : 4FF NanoEnvironmental Operating Temperature :
-25 ~ +75°C (Operational)
-40 ~ +85°C (Storage)
Humidity :
95%RH @ 50°C non-condensing
IP Rating :
IP X5Input/OutputPower supply: (Red) +9~90 VDC
GND: (Black) Ground
Digital Input: (Blue) for Panic button
Ignition: (Orange) for Ignition Detection
Digital Output: (Yellow) for Relay
LED Indicator: Power/Cellular/GPS IndicatorConnectors, SIM Card AccessConnector Type :
5 Pin Molex
GPS Antenna : Internal
GSM Antenna : Internal
SIM Card : InternalOn BoardCPU :
COB
Flash Memory :
4Mbit (3000 records)
3D Accelerometer :
On BoardMountingTie Wrap, Velcro or adhesive
