Easy Install, Compact GPS Tracker

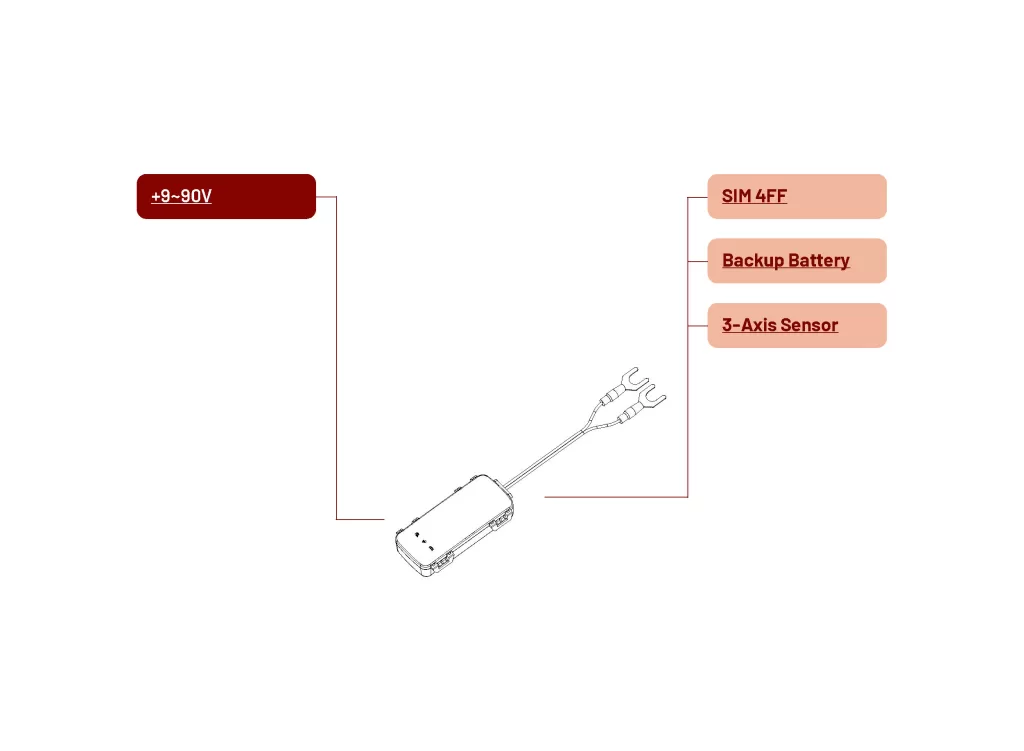

The GTU30 Easy Install is a compact, affordable vehicle tracking device designed to minimize installation costs while delivering high-precision location tracking. With powerful internal antennas and an IP65-rated water-resistant enclosure, the device connects directly to the vehicle’s battery terminal for a quick and secure setup.
Equipped with a built-in accelerometer, the GTU30 supports trip detection, driving behavior analysis, and location-based event monitoring. It is an ideal solution for insurance telematics, car rental and leasing services, light vehicle fleets, and other automotive applications.
Key Features:
- IP65 water-resistant design
- Assisted GPS for accurate positioning
- Driving behavior monitoring
- Low power consumption
GeneralGeneralCommunication Modes :
LTE/GPRS and TCP/SMS
Location Technology :
32 Channels GPS
Operating Voltage :
12 and 24 volt vehicle systems
ElectricalOperating Voltage :
9-90V DC operational for 12V & 24V
Power Consumption :
4mA 12V (Sleep), 29mA 12V (Active Tracking)
Backup Battery :
LI-ON 220mAh, Battery Recharging Range is 0 to +45ºC
GPSLocation Technology :
32 Channel GPS+Glonass+Beidu
Accuracy :
SBAS 10.0m CEP
Tracking Sensitivity :
-162dBm
Antenna :
Patch internal
Assist GPS : Supported
Physical Dimensions :
78(L) x 33(W) x 15(H)mm
Weight :
30g (With Battery)
CellularData Support :
SMS, TCP
4G LTE Bands:
B1/B2/B3/B4/B5/B7/B8?b20/B28/B66
2G GSM Bands:
850/900/1800/1900 Mhz
Output Power :
GSM900 Class 4 (33dBm ± 2dBm)
DCS1800 (26dBm ± 3dBm)
CAT1 FDD (23dBm ± 2dBm)
SIM Card : 4FF Nano
Environmental Operating Temperature :
-25 ~ +75°C (Operational)
-40 ~ +85°C (Storage)
Humidity :
95%RH @ 50°C non-condensing
IP Rating :
IP X5
Input/OutputIgnition Sense :
Virtual Ignition Sense
Status LEDs :
GPS, Cellular
Connectors, SIM Card AccessConnector Type :

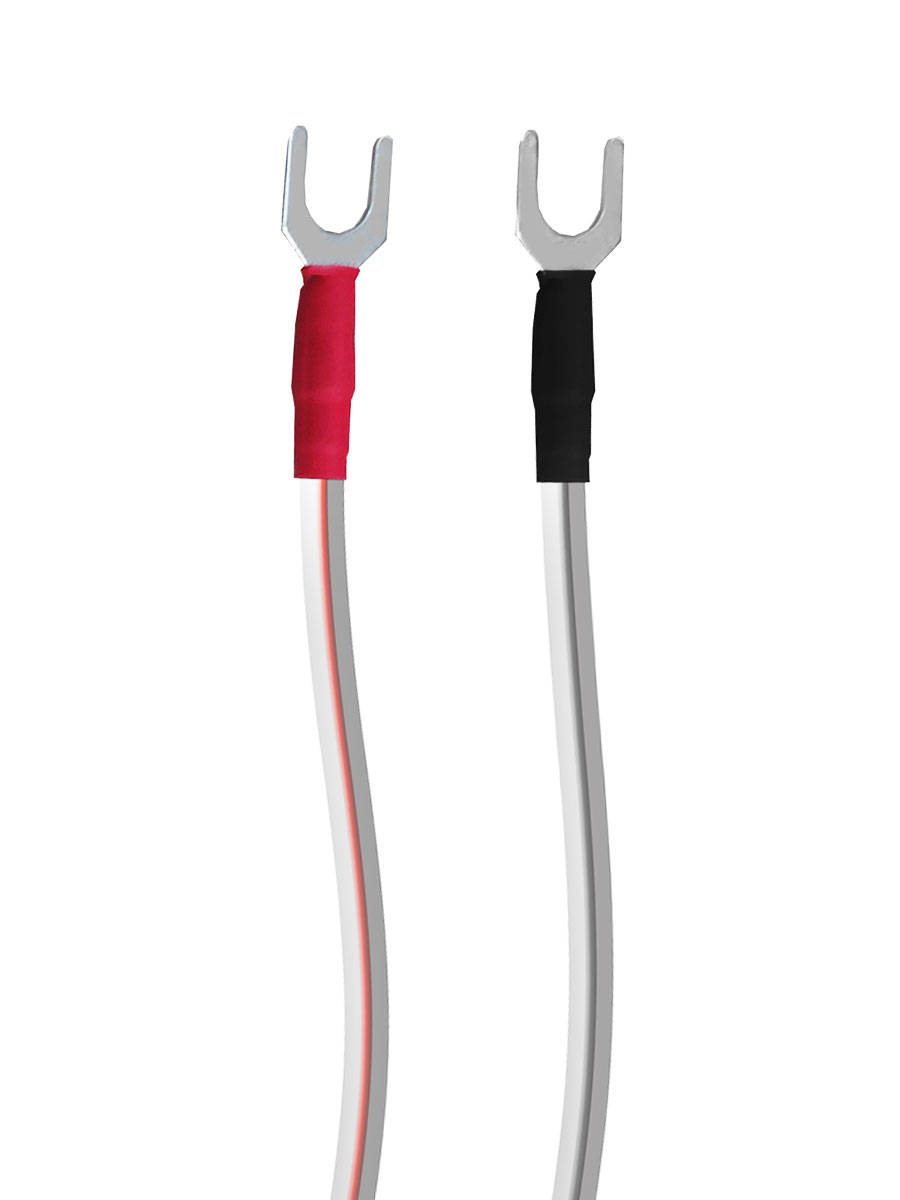

2 Pin Battery Mount
GPS Antenna : Internal
GSM Antenna : Internal
SIM Card : Internal
On BoardCPU :
COB
Flash Memory :
4Mbit (3000 records)
3D Accelerometer :
On Board
MountingTie Wrap, Velcro or adhesive
