Revolutionize Your Fleet Management with GTU100: World-Class Connectivity and Easy Programming for Maximum Efficiency!

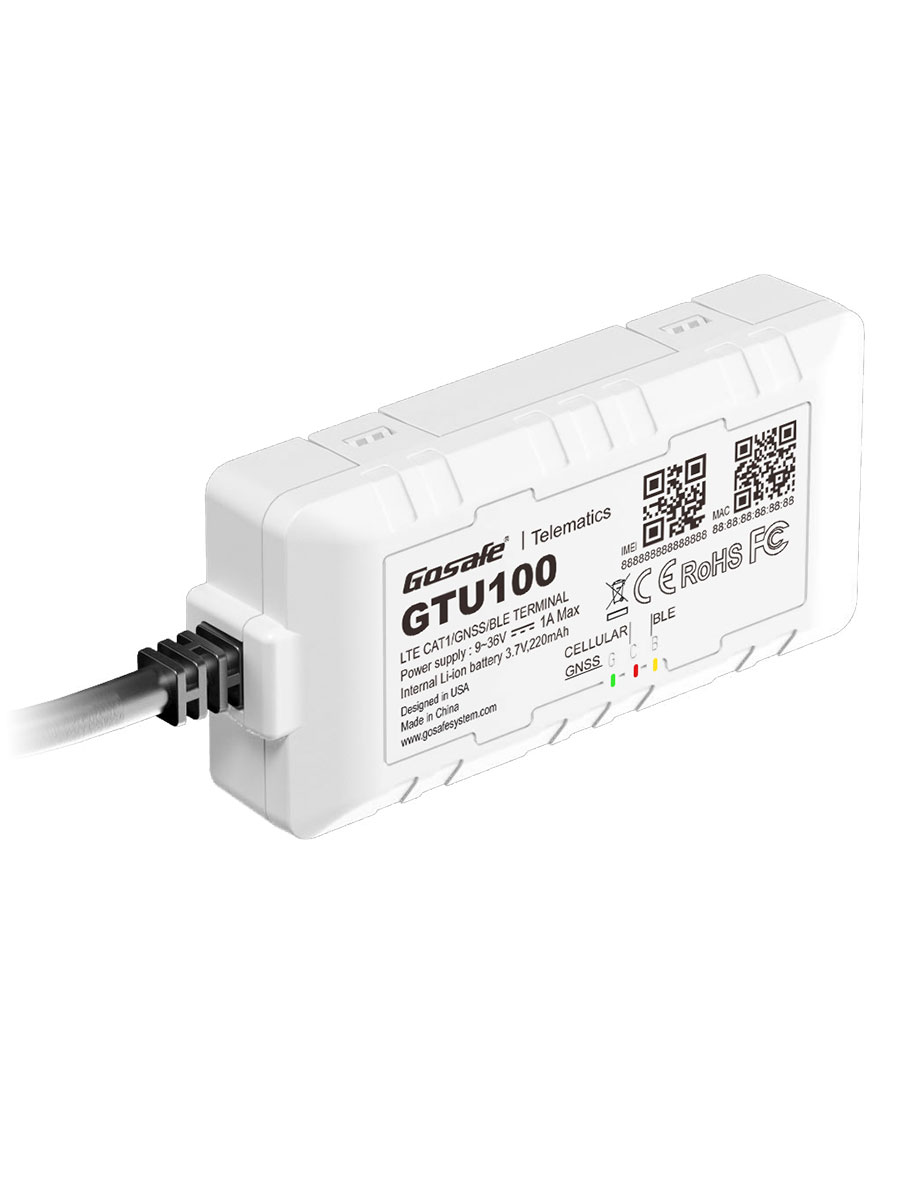

GTU100 is a proven fleet tracker designed for light and commercial fleets that need high-speed connectivity with the backend to offer turn-by-turn sensor data. GTU100 is a compact device with easy programming rules to address all the requirements of fleet owners and service providers.
- Worldwide connectivity LTE CAT 1, 3G, 2G
- Wi-Fi Location
- Crash Data
- Easy Programming to get maximum
GeneralCommunication Modes :
LTE/GPRS and TCP/UDP/SMS
Location Technology :
56 Channels GPS
Operating Voltage :
12 and 24-volt vehicle systems
ElectricalOperating Voltage :
9-40 VDC operational for 12V & 24V
Power Consumption :
400uA @ 12V (Deep Sleep)
3mA @ 12V (Sleep)
60mA @ 12V (Power Save)
120mA @ 12V (Active Tracking)
Backup Battery :
LI-ON 220mAh, Battery Recharging Range is 0 to +45ºC
GPSLocation Technology :
Multi GNSS Engine
GPS/Glonass/Galileo/BeiDou
GPS/QZSS L1 C/A, Glonass L10F
BeiDou B1, Galileo E1 B/C
SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Concurrent GNSS: 3
Accuracy: SBAS 2.0m Open Sky
Tracking Sensitivity: -167dBm
Antenna: Patch internal
Assist GPS: Supported
Physical Dimensions :
92(L) x 45(W) x 19.5(H)mm
Weight :
85g
CellularData Support :
TCP, UDP, SMS
LTE CAT-1 :
B1/2/3/4/5/7/8/12/13/17/18/19
20/25/26/28/66
GSM/3G:
850/900/1800/1900 Mhz
LTE Power :
Class 5 (20dBm)
GSM/GPRS Fallback :
GPRS Class 10
LTE Data Rate :
5Mbps UL/10Mbps DL
SIM Card :
1.8/3.3 V
EnvironmentalOperating Temperature:
-40 ~ +85°C (without Backup Battery)
-10 ~ +60°C (with Backup Battery)
Humidity:
95%RH @ 50°C non-condensing
Shock & Vibration:
U.S. Military Standards 202G and 810F, SAE
J1455
EMC/EMI:
SAE J1113; FCC–Part 15B
RoHS: Compliant
IP Rating: IPX5
Input/OutputIgnition Sense :
One dedicated wire for Ignition
Digital Inputs :
1 High/Low 0-30VDC
Digital Outputs :
1 Open Collector Relay 150mA
1-Wire Interface:
1 (Driver ID/Temperature Sensor)
BLE 4.2: for Wireless Sensors
Status LED: GPS, Cellular, Power
Connectors, SIM Card AccessConnector Type :
8 wire Pigtail
Micro USB: 1 Micro USB (configuration/debug)
GPS Antenna: Internal
Cellular Antenna: Internal
SIM Access: Internal (4FF) or e-SIM Embedded on PCB
On BoardCPU :
ARM Cortex M3
Flash Memory :
8Mbit
3D Accelerometer :
On Board
Certifications
CE, E-Mark, FCC(under process)
