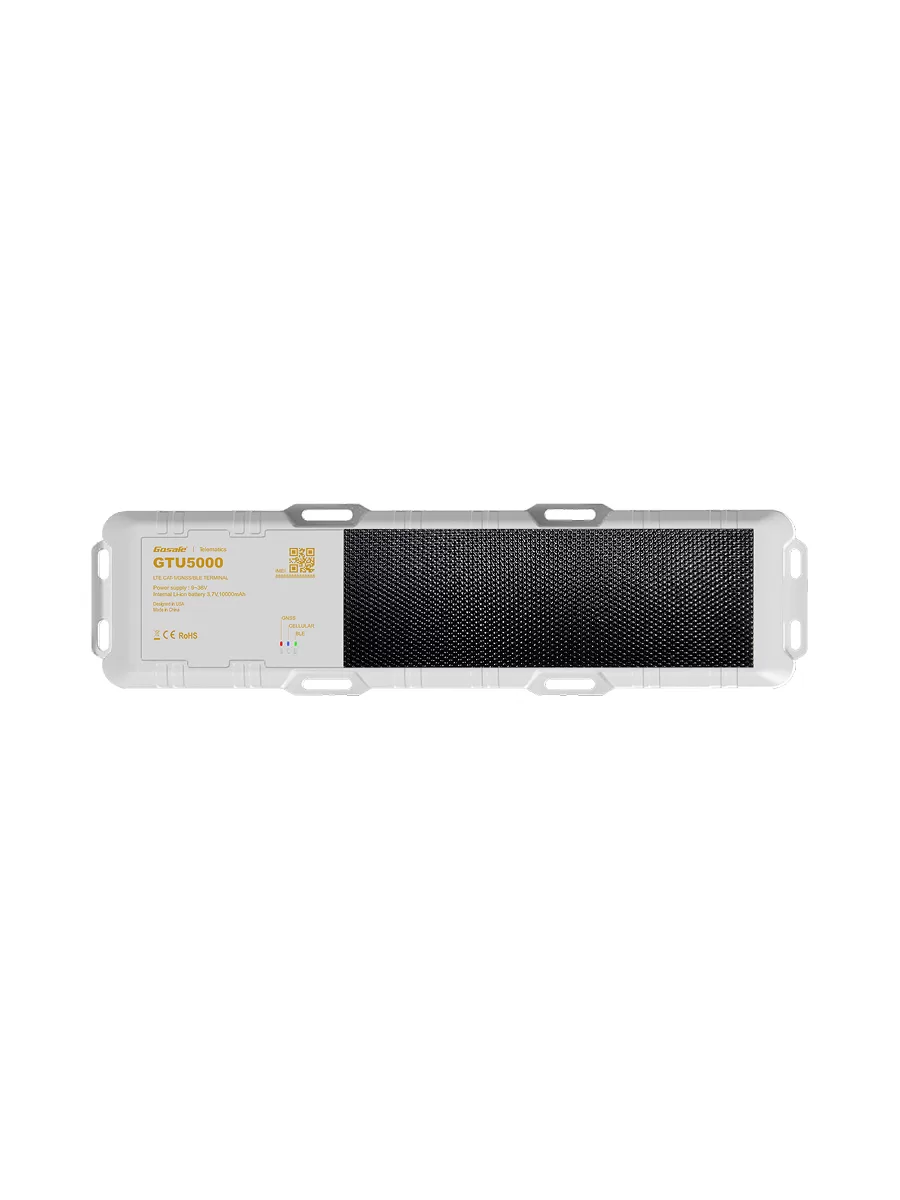

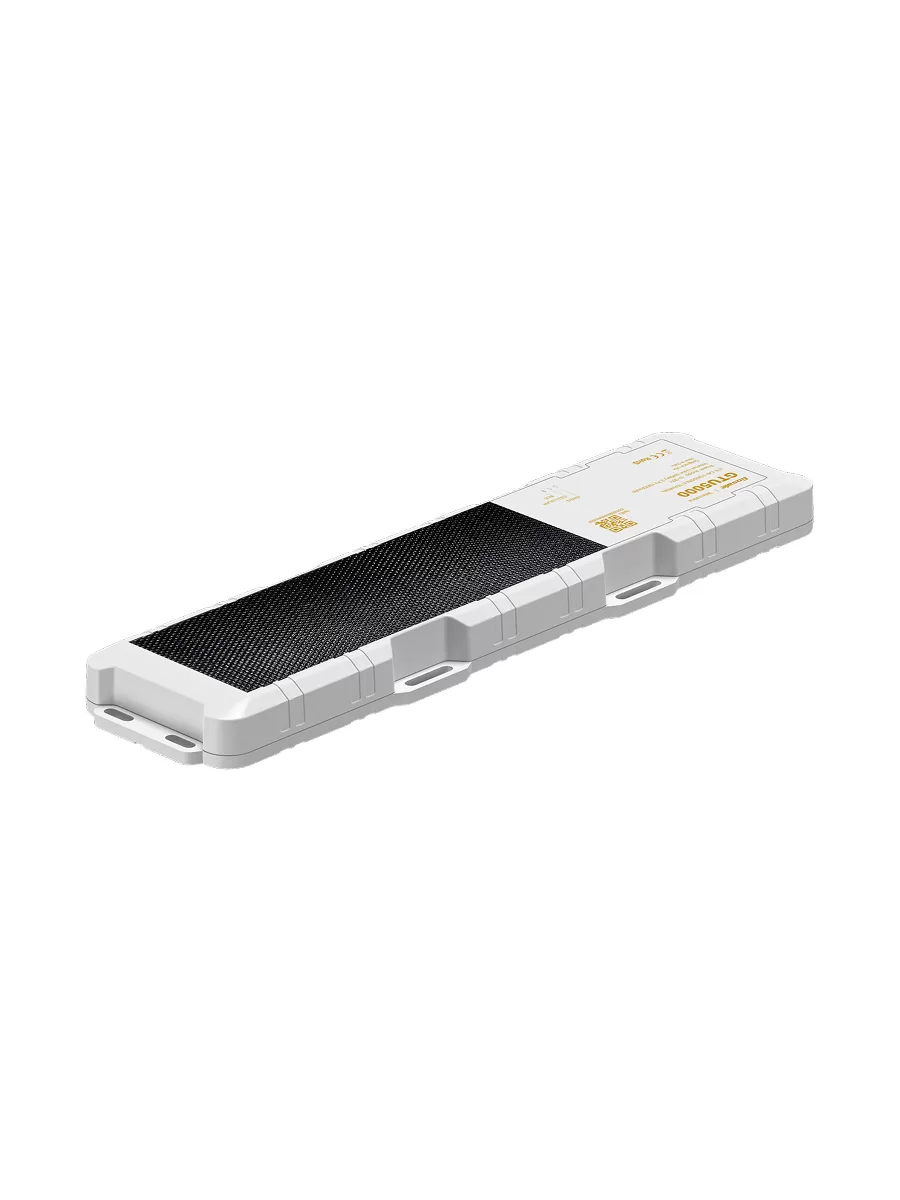

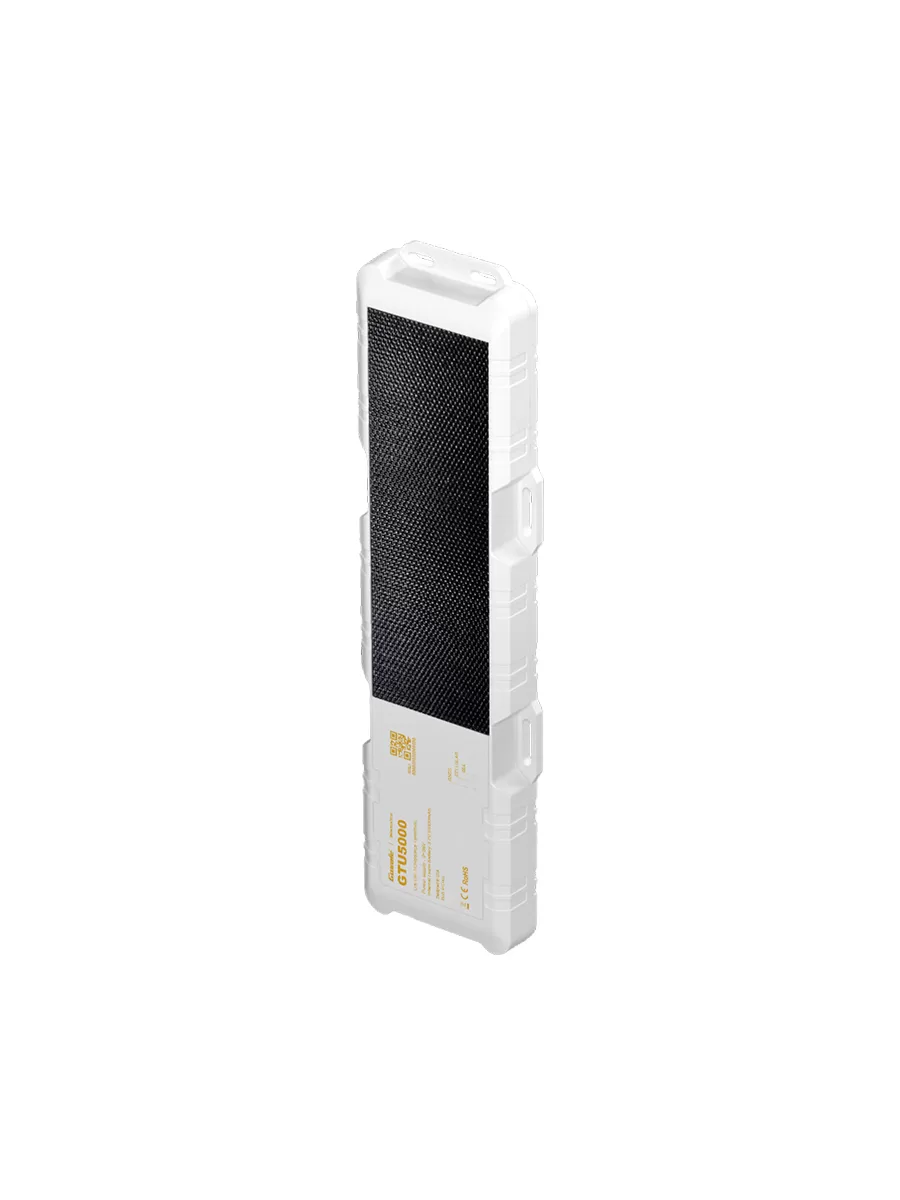

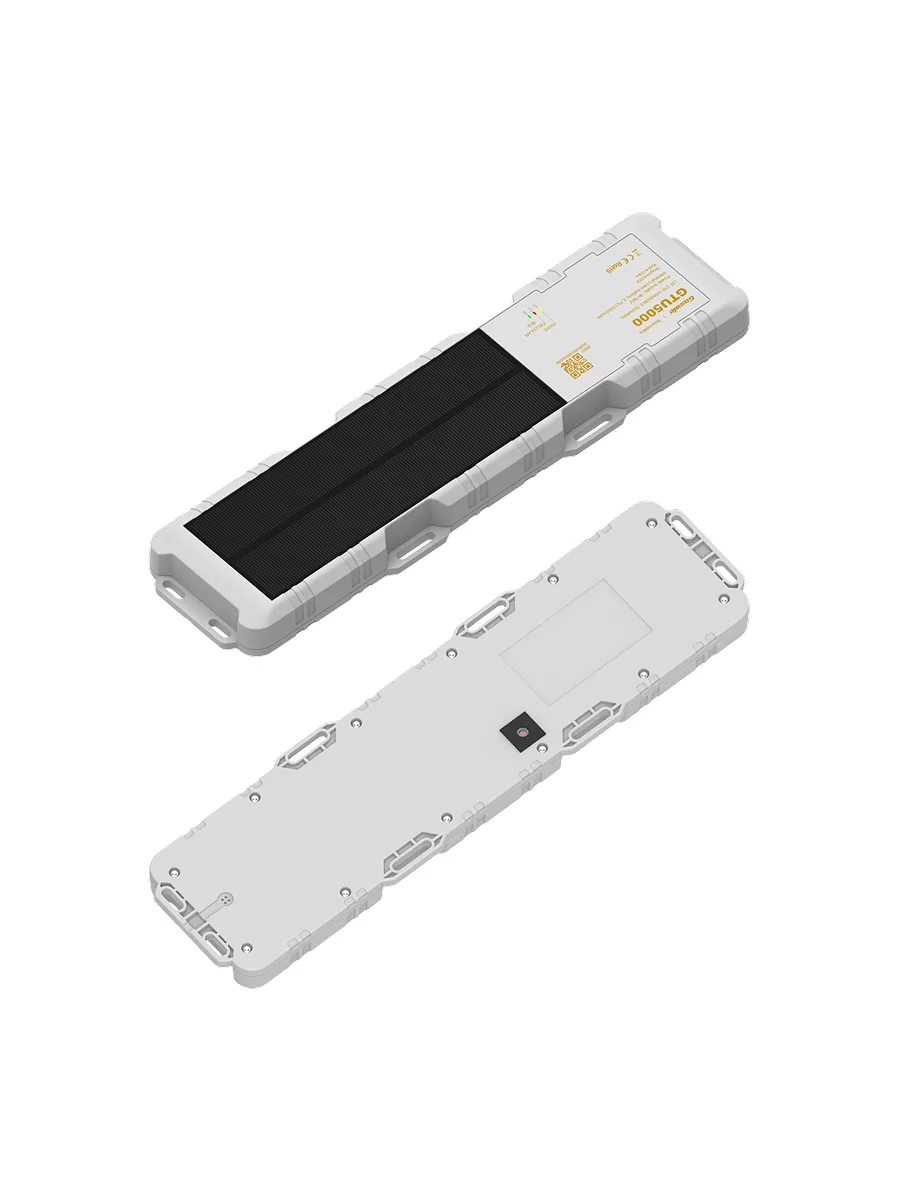

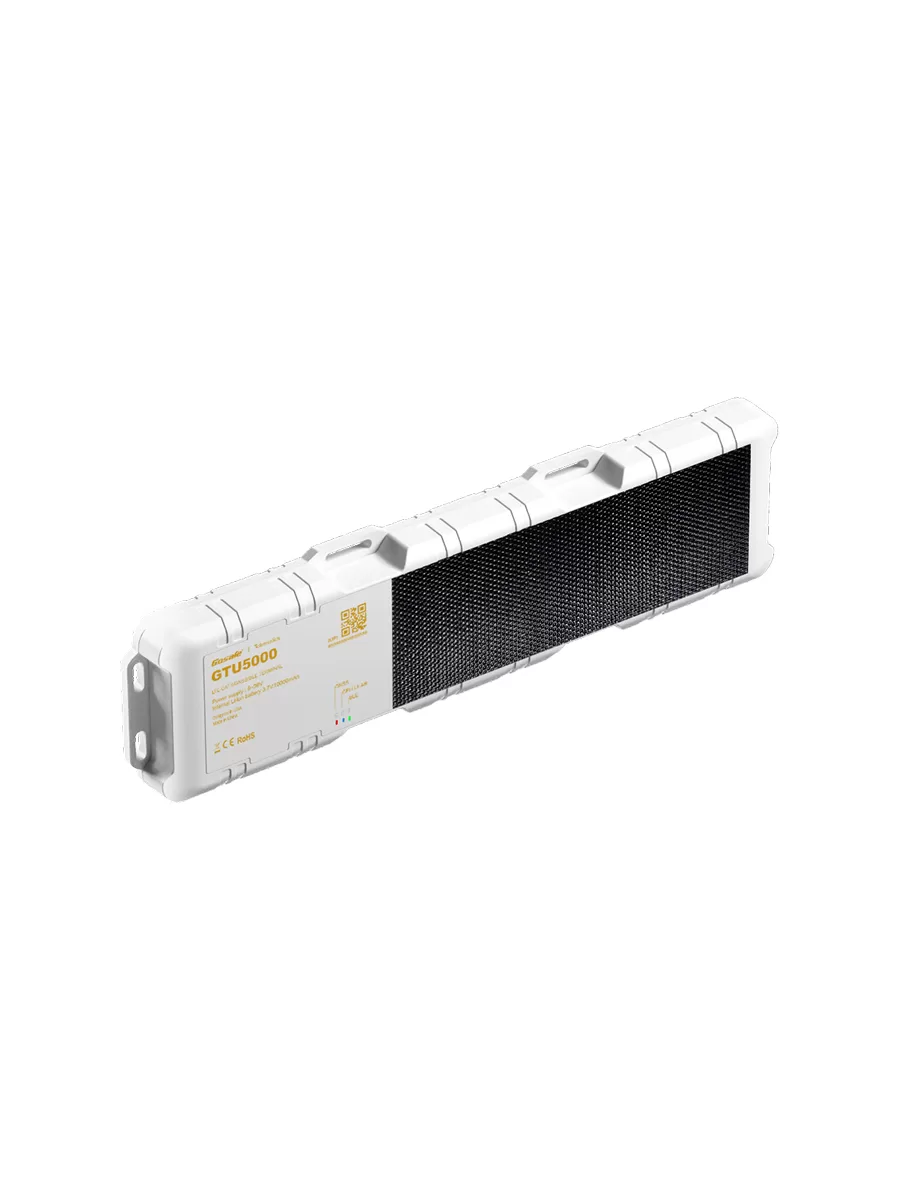

GAT5000 Solar Powered Tracker
The solar-powered GAT5000 is an ultra-rugged, IP67-rated wireless GPS tracker designed for long-term outdoor asset monitoring. It features a high-capacity 10,000 mAh rechargeable battery supported by 4,500 mAh backup dry batteries for extended operation in all environments.
Its high-efficiency solar panel continuously replenishes the internal battery, enabling over 15 location reports per day under normal conditions. With over-the-air (OTA) configuration, device settings can be updated remotely at any time.
- Ideal solution for tracking assets.
- Expandability: Monitoring the status of your asset, location, temperature, humidity etc, by BLE 5.0
- High effective power solution: solar power, backup battery, low power consumption
- Comprehensive: It can be programmed to match your multiple need.
- What you benefit: Increase your asset utilization, security and operational efficiency.
GeneralCommunication Modes :
LTE/GPRS and TCP/SMS
Location Technology :
32 Channels GNSS
Solar Charging :
6 VDC
ElectricalSolar Charging Voltage :
6 VDC
Power Consumption :
400uA @ 12V (Deep Sleep
5mA @ 12V (Radio-Active Sleep)
60mA @ 12V (Active Tracking with GPS and cell enabled)
Backup Battery :
LI-ON 10000mAh, Battery Recharging Range is -20 to +60ºC
Dry Battery 4500mAh (Backup)
GPSLocation Technology:
Multi GNSS Engine
GPS/Glonass/BeiDou
GPS/QZSS L1 C/A, Glonass L10F
BeiBou B1
SBAS, WAAS, EGNOS, MSAS, GAGAN
Concurrent GNSS: 2
Accuracy: SBAS 2.0m Open Sky
Tracking Sensitivity: -162dBm
Antenna: Patch internal
Assist GPS: Supported
Physical Dimensions :
354(L) x 94(W) x 25.40(H)mm
Weight :
850g
CellularData Support :
TCP, SMS
4G LTE CAT-1 EMEA :
B1/3/5/7/8/20
4G LTE CAT-1 LATAM :
B1/2/3/4/5/7/8/28/66
GSM:
850/900/1800/1900 Mhz
LTE Power :
CAT-1 FDD (23dBm±2dB)
GSM/GPRS Fallback :
DCS:1800 (26dBm±3dB)
LTE Data Rate :
5Mbps UL/10Mbps DL
SIM Card :
1.8/3.3 V
Environmental Operating Temperature :
-20 ~ +60°C (Operating on Internal Battery)
-30 ~ +45°C (Storage within 3 months)
Humidity:
95%RH @ 50°C non-condensing
ESD: SEAJ1113-13 (4KV Limit)
Shock & Vibe: U.S. Military Standards 202G, SAEJ1455
IP Rating: IPX7
Input/OutputBLE 5.0 :
for Wireless Sensor
Proximity Sensor :
Builtin for Dismantle Event
Status LEDs :
GPS, Cellular, Bluetooth
Connectors, SIM Card AccessGPS Antenna: Internal
Cellular Antenna: Internal
SIM Card : Internal (4FF) and M2M Embedded SIM
On BoardFlash Memory :
8Mbit
3D Accelerometer :
On Board
BLE 5.3 : On Board
MountingScrews, Tie Wrap, Velcro or adhesive
