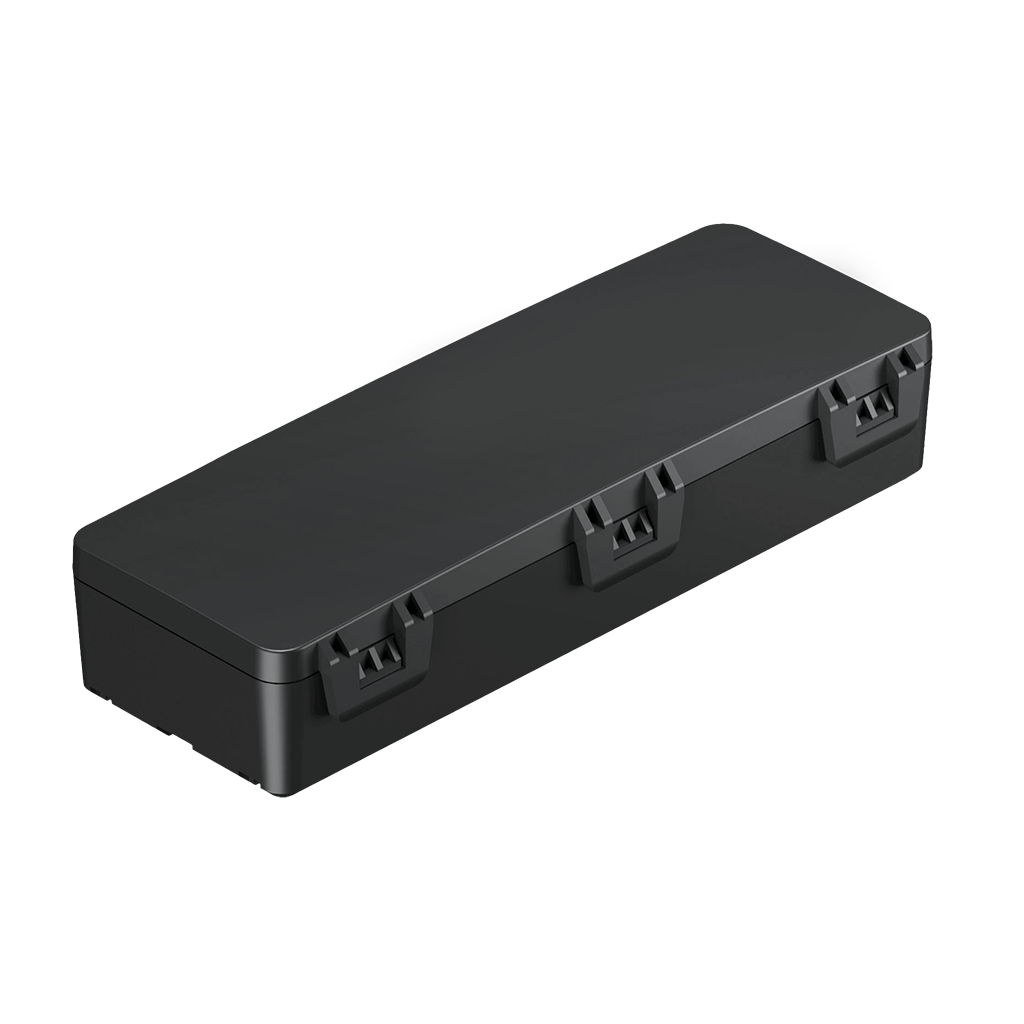

Asset Tracker with 10-Years Battery Life
If you need a reliable and long-lasting asset-tracking device, the G2C-DB is the perfect choice for you. It has a 9000mAh dry battery that can power the device for up to 10 years with one message per day. It also has various reporting modes that let you manage your assets according to your needs with ease.
- 10 years battery life just install once
- GPS + Beidou + WIFI + LBS Location technology
- Rugged and Waterproof
- Flexible configuration
GeneralCommunication Modes :
GPRS, LTE, and TCP/SMS
Location Technology :
56 Channels GPS
Operating Voltage: 3.0 VDC
ElectricalOperating Voltage: 3.0V
Power Consumption :
3.0µA 3.0V (Deep Sleep)
70mA 3.0V (Active Tracking)
Replaceable Battery :
6 x CR123 (9000mAh)
GPSLocation Technology :
56 Channel GPS (with SBAS)
GPS L1 1575.42 MHz
Beidou BDSB1 1561.098 MHz
Accuracy : +/- 2.5m Open Sky
Tracking Sensitivity: -162dBm
Cold Start: 32 Sec
Hot Start: 1 Sec
Antenna: Patch internal
Assist GPS: Supported
Standby Time with 9000 BatteryTCP Reporting :
1 Message a day 120 Months
2 Messages a day 55 Months
4 Messages a day 20 Months
Physical Dimensions :
129(L) x 49(W) x 22(H)mm
Weight :
125g
CellularData Support :
SMS, TCP
GSM/GPRS Quad Band :
900/1800 MHz
LTE CAT1 :
B1/B3/B5/B8/B20/B28 (EMEA)
B1/B2/B3/B4/B5/B7/B8/B28/B66 (Latam)
LTE Output Power :
Class 3 (23dBm +/- 2dB)
LTE Data Rate :
10Mbps UL/5.0Mbps DL
GSM/GPRS Output Power :
Class 1 (1W)
SIM Card: 4FF 1.8/3.3 V
EnvironmentalIP Rating: IPX7
Operating Temperature :
-20 ~ +70°C
Humidity :
95%RH @ 50°C non-condensing
Shock & Vibration :
U.S. Military Standards 202G and
810F, SAE J1455
EMC/EMI :
SAE J1113; FCC–Part 15B
RoHS: Compliant (Optional)
Input/OutputsStatus LEDs :
Cellular/GPS
Digital Inputs :
0 Digital input
Digital Outputs :
0 Digital output
Serial Port :
0 Serial port
Connectors, SIM Card AccessConnector Type: No Connector
GPS Antenna: Internal
Cellular Antenna: Internal
SIM Card: Internal (Nano)
On BoardCPU :
ASR 1603
Flash Memory :
(1000 records)
3D Accelerometer : On Board
